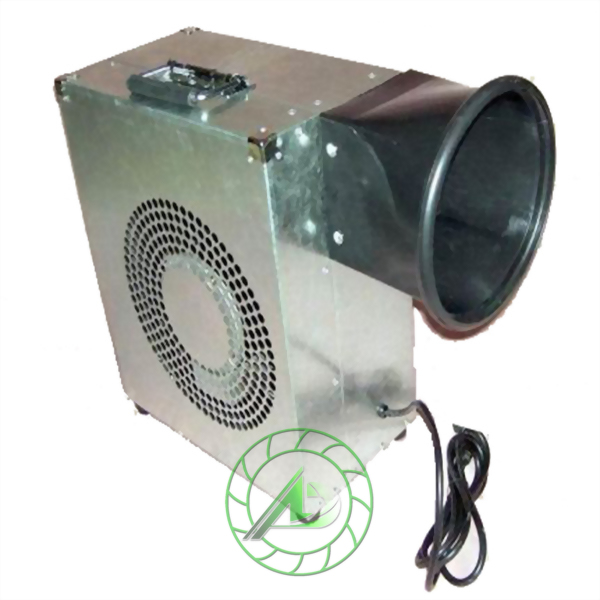

Inflatable Blower Fan: AD240BF20

AD240BF20

Features:
High quality 0.5HP air blower features high air volume and high air pressure. Ideal for inflating bouncy castle, inflatable playground, inflatable tent, inflatable advertisement arches etc.
Descriptions:
1. power: 1/2HP, 115V, 50/60Hz
2. Casing: galvanized mild steel
3. Dimension: 300(L)*200(W)*340(H)mm (not include the tapered outlet)
4. P.P. tapered outlet dimension:150mm (D)*140mm(L)
5. 2 meters cable wire lead
6. unit weight: 13.5KG
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/Shanghai/Guangdong/Vietnam
