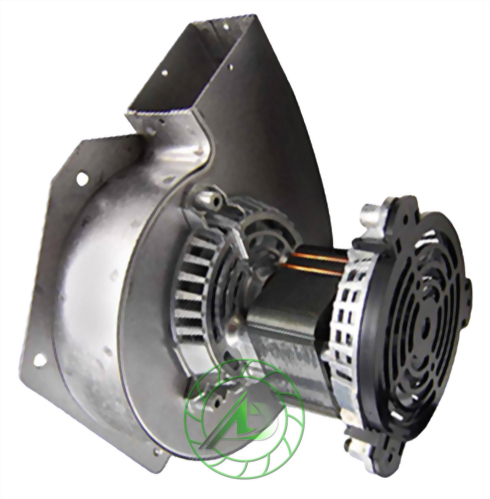

Fasco Blower Motor: AD121ASP

AD121ASP

Taiwan Blower manufacturer, Air Deviser with more 30 years experiences, is specializing in Centrifugal Air blowers, draft inducer, combustion air blowr for application of HVAC equipment, machinery, for air circulation, air dissipation, heating, ventilation, air conditioning, refrigeration, humidifier, fasco blower replacement

Characteristics:

1.Air blower in shaded pole motor .
2. It's compact size is easy for installation and maintenance.
3. Blower motor with UL/CUL approval.
4. Direction of fan's outlet is adjustable.
Application:
Mainly apply on small boiler, machinery, air conditioner, kitchen hood, baking machine, packing machine, UV dryer, air shower etc. Or air suction, discharging, ventilation. furnace blower, heater, oven, HVAC system for air inducting and circulation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
