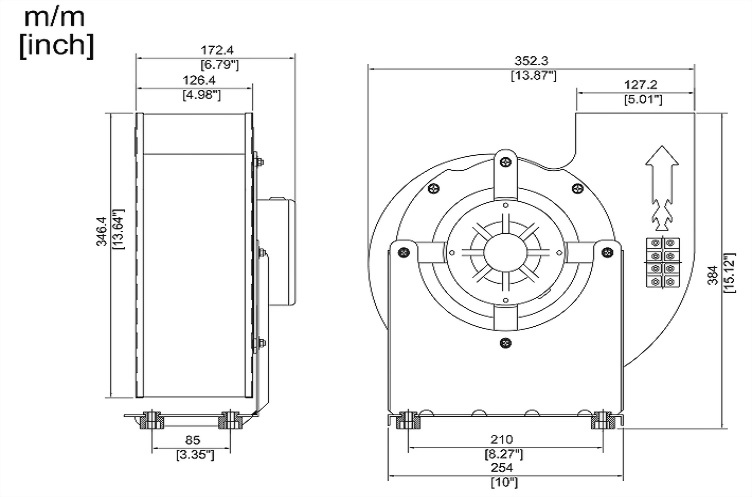

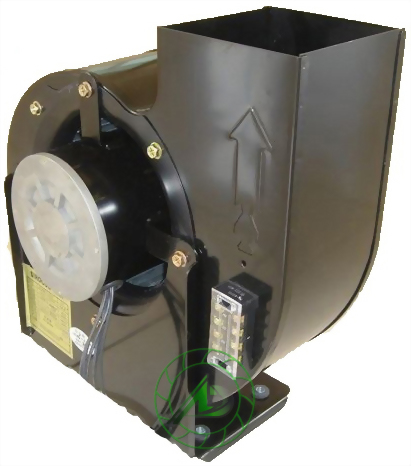

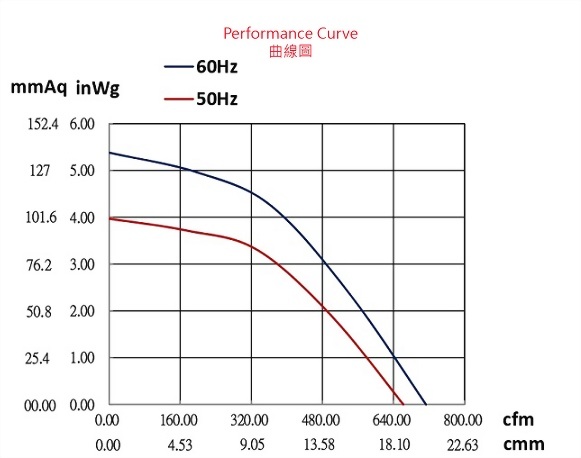

Air Shower Blower: AD200BK

AD200BK

Characteristics:
1. Single fan type.
2. High revolution speed (2800rpm ~ 3400rpm).
3. Fan's outlet can be mounted with square or circular flange.
4. Direction of fan's outlet is adjustable.
Application:
Can be used on printing machine, kitchen hood, clean room equipment, ventilation system, packing machine, UV dryer etc. for air suction, discharging, ventilation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
