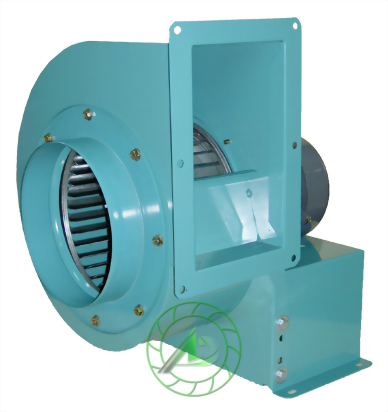

Centrifugal AC Blower- Single Fan Type: AD270AE

AD270AE

Air Deviser Industrial Co., Ltd.Specializing in air blowers, Sirocco fans, centrifugal blowers, Sirocco fan wheels, and fan impellers for standard and OEM units that can be the replacement for blowers of fasco, Lennox, Dayton, Goodman etc.

Characteristics:

1. Single fan type with foot mounted 4P motor.
2. Rotational speed around 1400rpm ~ 1700rpm.
3. Fan's outlet can be mounted with square or circular flange.
4. Direction of fan's outlet is adjustable.
Application:
Can be used for printing machine, kitchen hood, clean room equipment, ventilation system, packing machine, UV dryer etc. for air suction, discharging, ventilation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
