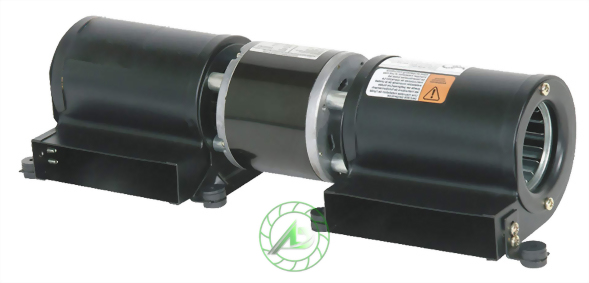

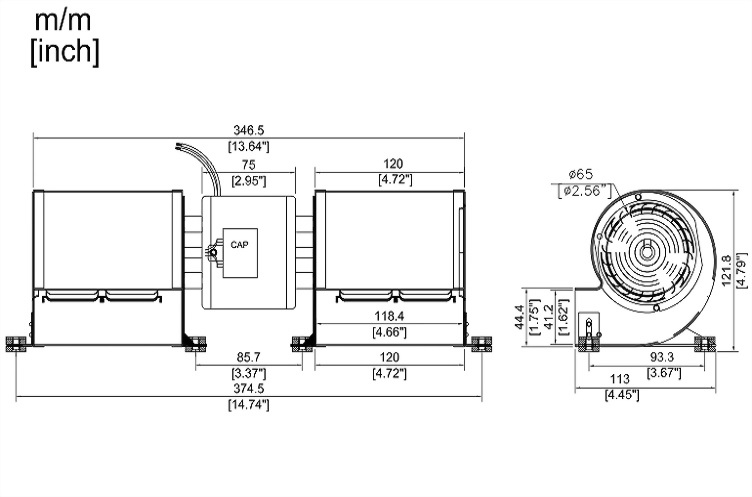

AD077DDS-2P1 Fan Coil Unit

AD077DDS

Fan coil units, HVAC systems, blower fans, fan wheels, fan blowers-Air Deviser provides high performance blower units with consistent air volume for cooling and heating application

Characteristics:

1. Double fan type.
2. High revolution speed (2800rpm ~ 3400rpm).
3. Fan's outlet can be mounted with square or circular flange.
Application:
Can be used for extruding machine, inflatables, clean room equipment, exposure machine, HVAC system for air suction/discharging, inflating, ventilation.

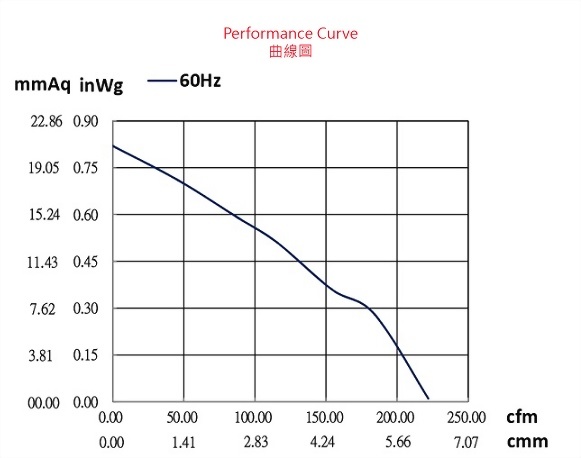

Note: Pressure and air flow shown here are for one fan only.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
