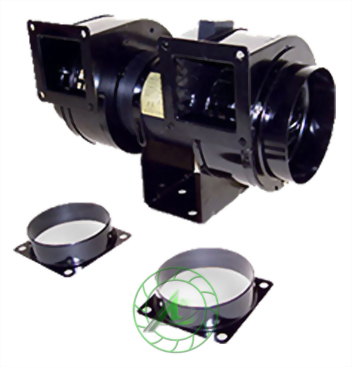

Centrifugal AC Blower- Duo-fan Type: AD100DD

AD100DD

Characteristics:
1. Double fan type.
2. High revolution speed 2800rpm ~ 3400rpm.

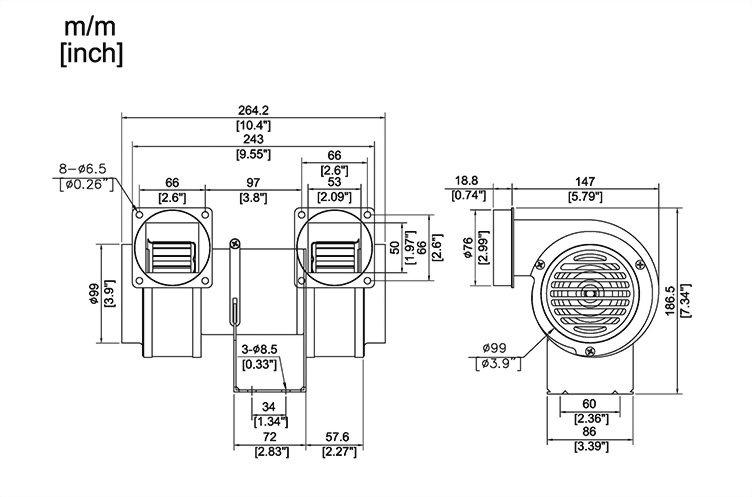

3. Fan's outlet can be mounted with square or circular flange.
Application:
Can be used for extruding machine, inflatables, clean room equipment, exposure machine, HVAC system for air suction/discharging, inflating, ventilation.

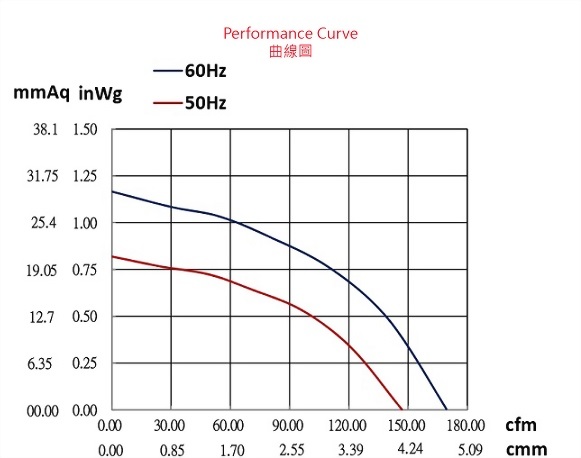

Note: Pressure and air flow shown here are for one fan only.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
