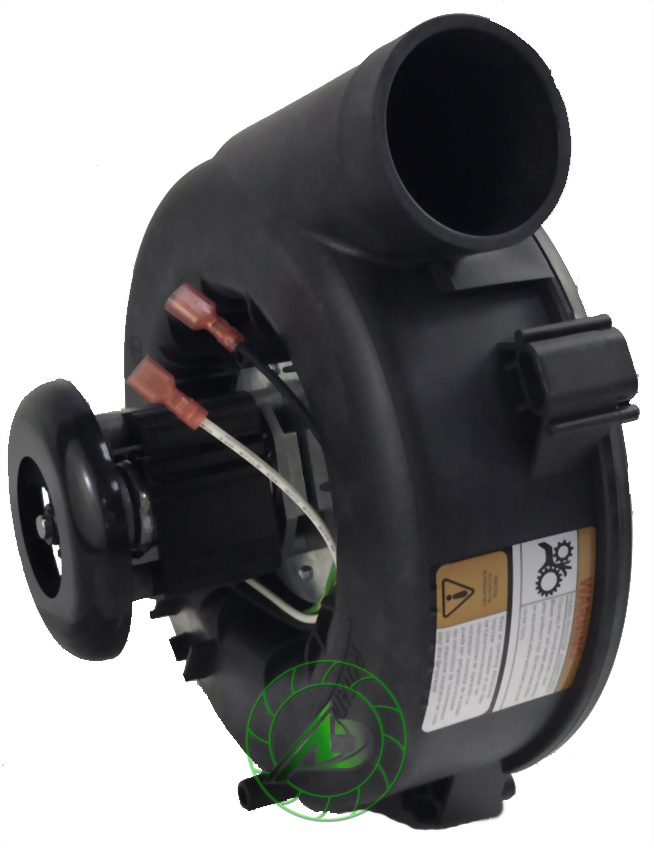

Draft Inducer Blower: ADP188BSP-2P1

ADP188BSP

Specializing in HVAC air blowers and blower fans, Air Deviser produces the high quality blower fans for application of Air Handler, Fireplace, Heaters, Air Conditioners, Frances, air coolers, air purifiers etc for air circulation, air ventilation and air conditioning etc.

Characteristics:Combustion air blower is high air volume blower with compact size for easy installation and maintenance. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.

Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai
