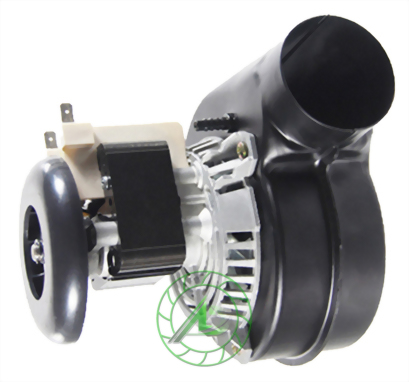

AD096BCS-2P1 from Combustion Air Blower Suppplier

AD096BCS

Air Deviser, a Taiwan-based blower company is specialing in centrifugal air blowers (sirocco fans), blower fan motors and blower fan wheels. With 30 years in blower industry, we have developed a wide range of air blowers and blower wheels for application of HVAC systems and machinery which can be used on packing machine, UV machine, car washing machine, printing machine, fireplace, heaters, air conditioners, furances, air coolers, air purifiers etc

Characteristics:

Combustion air blower is high air volume blower with compact size for easy installation and maintenance. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
