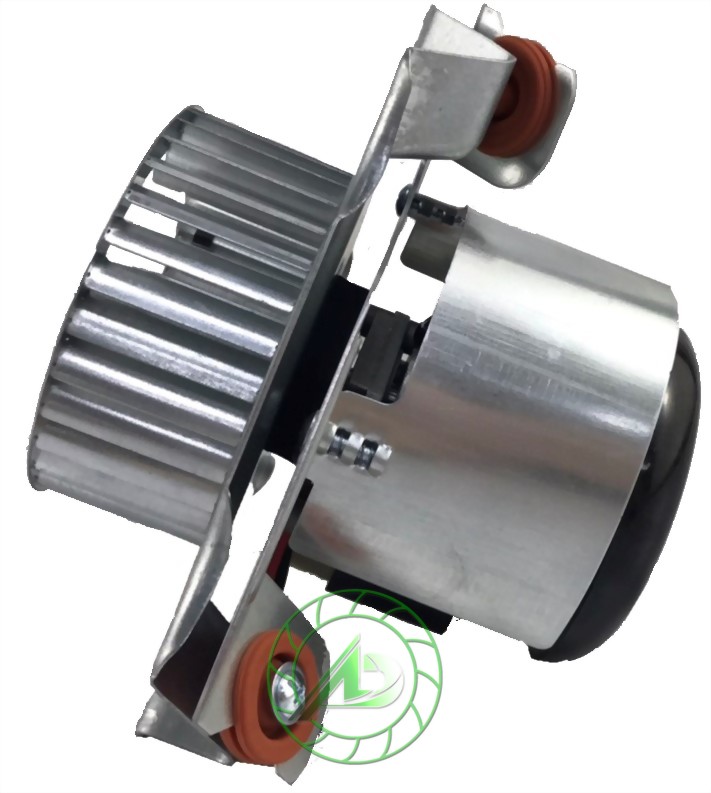

Blower Fan Motor: AD098ASP-V30

AD098ASP-V30

Characteristics:
Blower fan motor is high air volume blower with compact size for easy installation and maintenance. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Blower fan motor for application on furnace, heater, oven, HVAC system for air inducting and circulation
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
