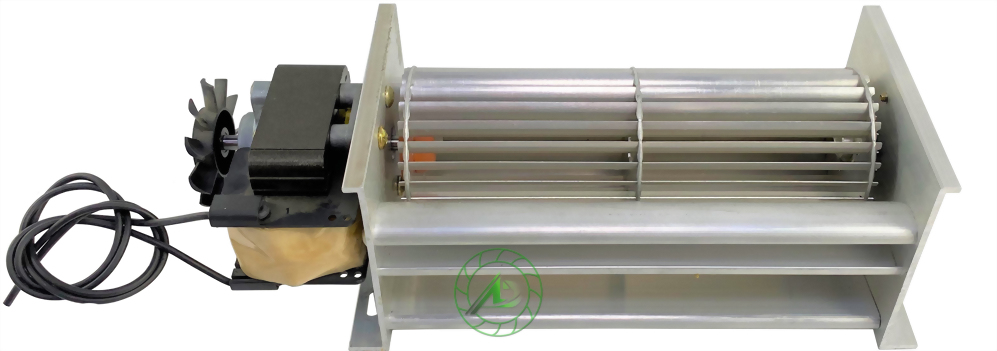

Cross Flow Fan: FE60180B

FEA60180BSP

Cross flow fan provides various application on machinery such as heat discharging, environmental, and hygienic devices for air condition system to improve air circulating and air exchanging and electrical appliance for heating, cooling etc.
Blower motor with UL/CUL approval.
Ventilator Features
1. Impeller: Aluminum
2. Motor type: C-frame type, shade pole type
3. Operation Resistance: 0 degree C to 45 degree C
4. Insulation Class: E (standard type), F (customized)
Application
1. Heat Discharge for Machinery
2. Environmental and hygienic application
3. Air Conditioning System
4. Electrical Appliance
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai
