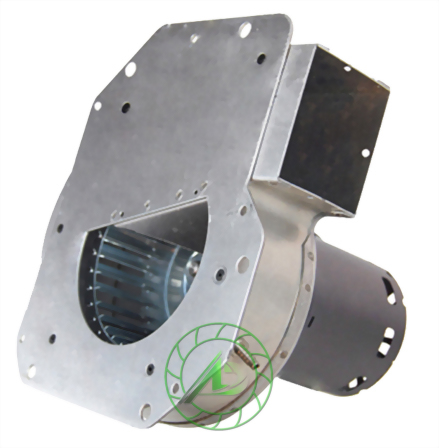

Draught Fan: AD120A - Air Deviser

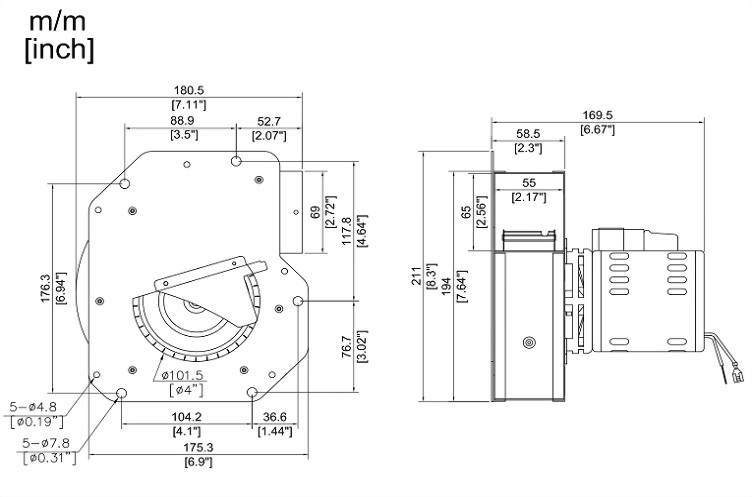

AD120A

Air Deviser ,Taiwan Blower manufacturer, is specializing in Centrifugal Air blowers, draft inducer, combustion air blower for HVAC equipment, machinery, for air circulation, air dissipation, heating, ventilation, air conditioning, refrigeration, humidifier, fasco blower replacement

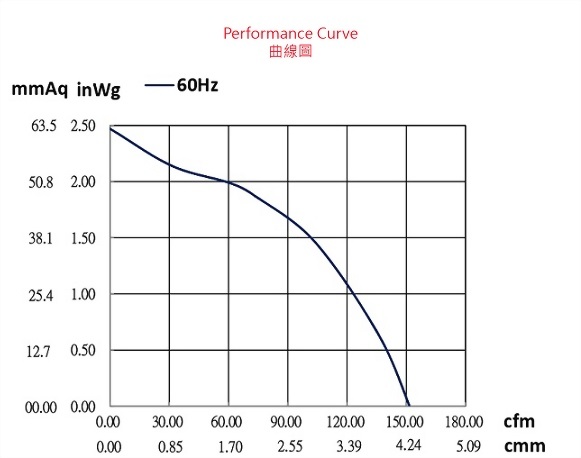

Characteristics:

Combustion air blower is high air volume blower with compact size for easy installation and maintenance. PSC motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
