Inflatable Blower Fan: AD240PF40

AD240PF40

Features:

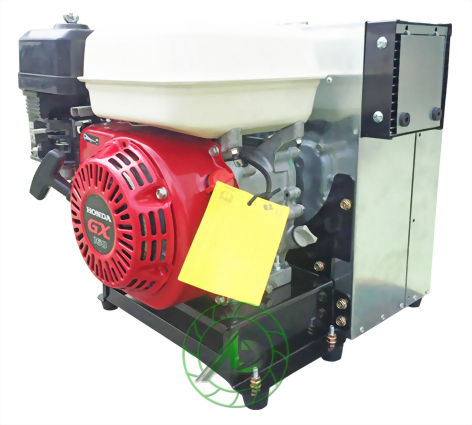

High quality 4HP air blower powered by Honda petrol engine with high air volume and high air pressure which is good for using at the location not supplying AC electric power. It is ideal for inflating big bouncy castle, inflatable playground, inflatable tent, inflatable advertising arches etc. for various kinds of inflatables
Descriptions:
1. Engine type: Honda 4HP petrol engine
2. Power souring: petrol/gasoline
3. rotational speed: 3400rpm
4. high air flow, high air pressure
4. Fuel tank capacity: 2.5L
5. unit weight: 26KGs
6. advantage: 100% powered by petrol/gasoline not needing to be connected to AC electric power supply
Application:
ideal for inflating bouncy castle, jumping castle, inflatable playground, inflatable arches
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
