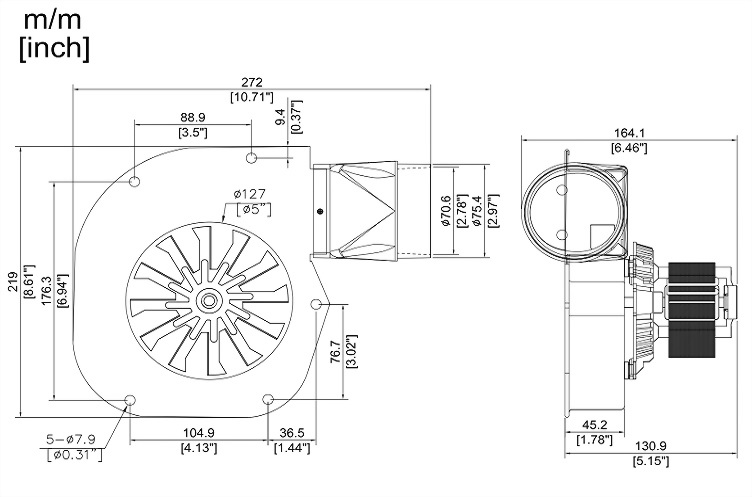

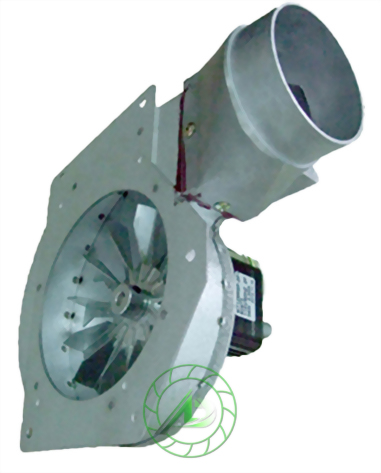

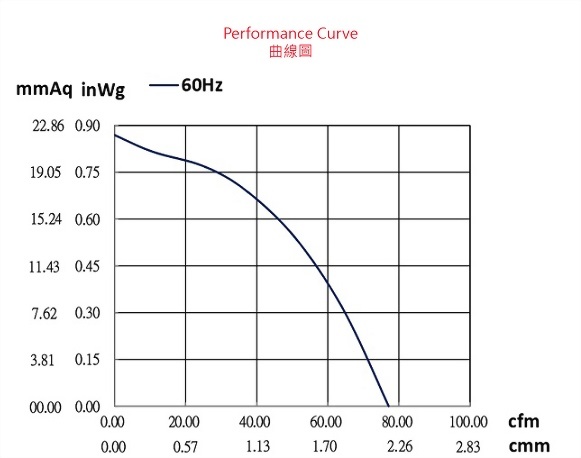

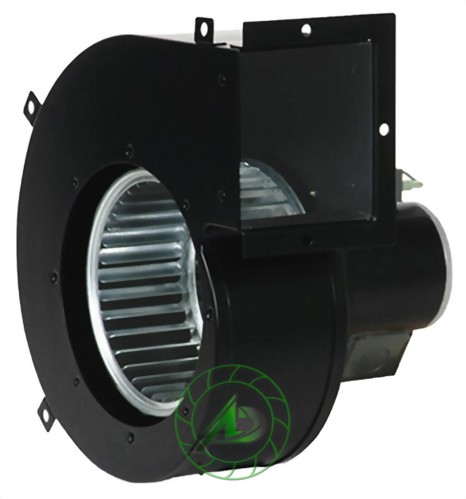

Draft Inducer / Air Blower Fan: ADU125RSP

ADU125RSP

Characteristics:
Draft inducer air blower is high air volume blower with compact size for easy installation and maintenance in direct replacement draft inducers. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
