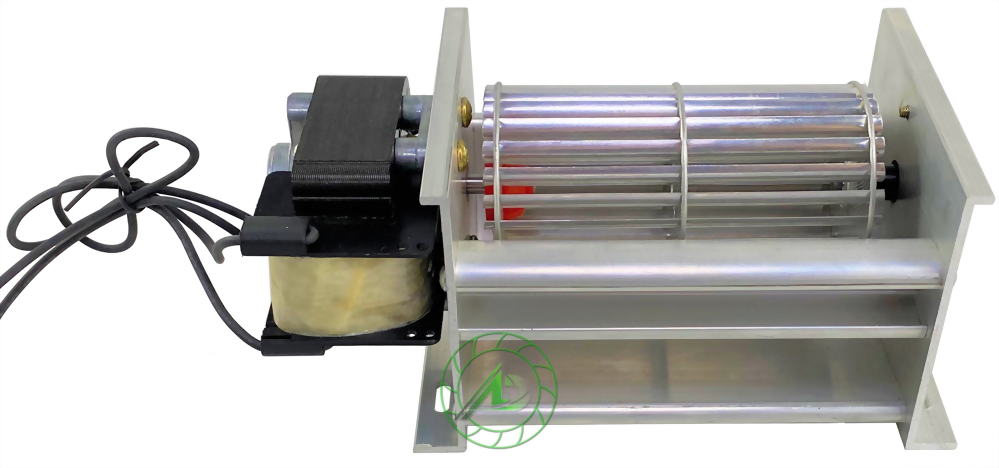

Cross Flow Fan: FE60115B

FEA60115BSP

Characteristics:
1. Impeller: Aluminum
2. Motor type: C-frame type, shade pole type
3. Operation Resistance: 0 degree C to 45 degree C
4. Insulation Class: E (standard type), F (customized)
Application
1. Heat Discharge for Machinery
2. Environmental and hygienic application
3. Air Conditioning System
4. Electrical Appliance
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
