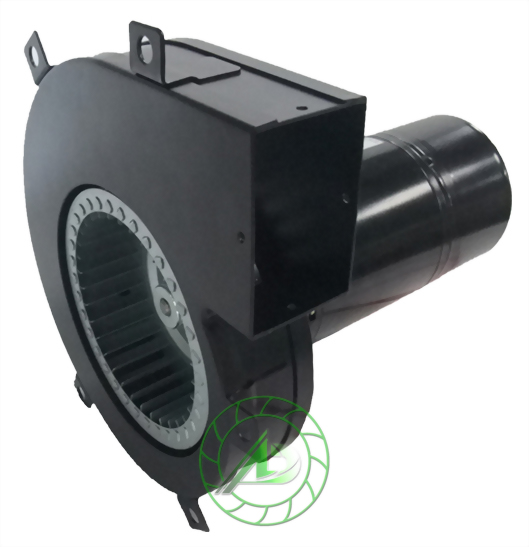

Draft Inducer / Air Blower Fan: AD115ASW

AD115ASW

Centrifugal Fans Manufacturer - Air Blower Fans Manufacturer
Centrifugal Industrial Fan Manufacturer for more than 30 years. Manufacturing blowers for HVAC system, Agriculture, Food industries, kitchen equipment for air circulation, heat dissipation and fume exhausting

Characteristics:

Draft inducer air blower is high air volume blower with compact size for easy installation and maintenance in direct replacement draft inducers. PSC motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
