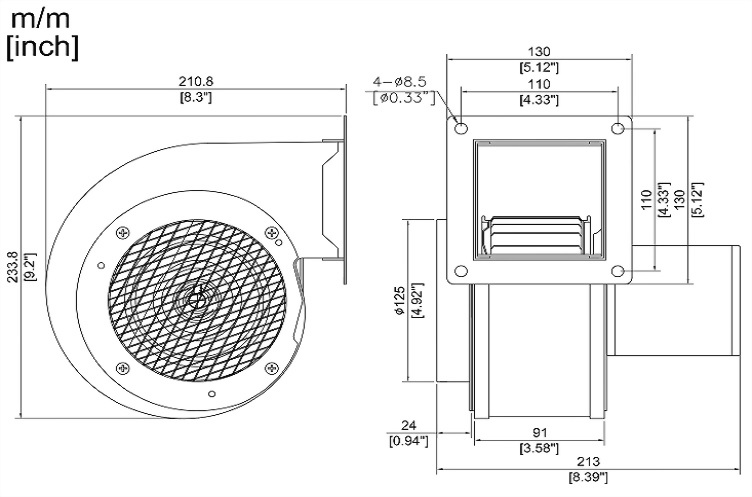

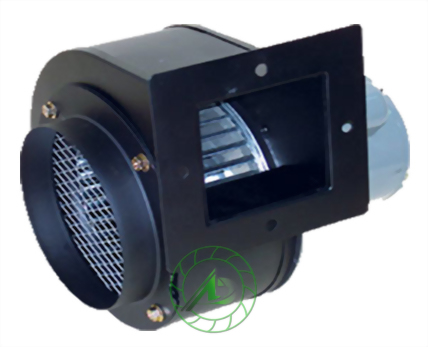

Centrifugal AC Blower- Single Fan Type: AD125AV

AD125AV

Characteristics:
1. Single fan type with vertical 4P motor.
2. Rotational speed around 1400rpm ~ 1700rpm.
3. Compact size for easy installation.
Application:
Can be used for printing machine, small boiler, kitchen hood, baking machine, packing machine etc. for air suction, discharging, ventilation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
