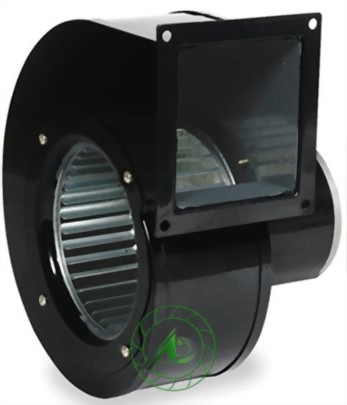

Centrifugal AC Blower- Single Fan Type: AD310AE

AD310AE

Air Deviser provides high air volume air mover, carpet dryer ideal for carpet/floor drying, air exhausting, air circulation, stage special effect. 3-stage speed design gives the users more options for air capacity demand.

Characteristics:

1. Single fan type with foot mounted 4P motor.
2. Rotational speed around 1400rpm ~ 1700rpm.
3. Fan's outlet can be mounted with square or circular flange.
4. Direction of fan's outlet is adjustable.
Application:
Can be used for printing machine, kitchen hood, clean room equipment, ventilation system, packing machine, UV dryer etc. for air suction, discharging, ventilation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
