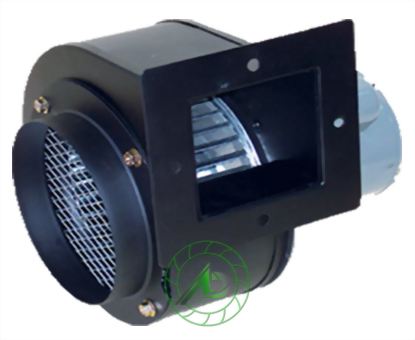

Industrial Air Blower: AD150AV

AD150AV

Specializing in centrifugal blowers (sirocco fans) and blower motors, 30 years experiences in blower industry. We supply air blowers, combusition air blowers, draft inducers, and blower fan wheels for application of packing machine, UV machine, car washing machine, printing machine, fireplace, Heaters, Air Conditioners, Furances, air coolers, air purifiers etc for air circulation, air ventilation and air conditioning etc.

Characteristics:

1. Single fan type with vertical 4P motor.
2. Rotational speed around 1400rpm ~ 1700rpm.
3. Compact size for easy installation.
Application:
Can be used for printing machine, small boiler, kitchen hood, baking machine, packing machine etc. for air suction, discharging, ventilation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
