Fan Blade: AD098ASP - Air Deviser

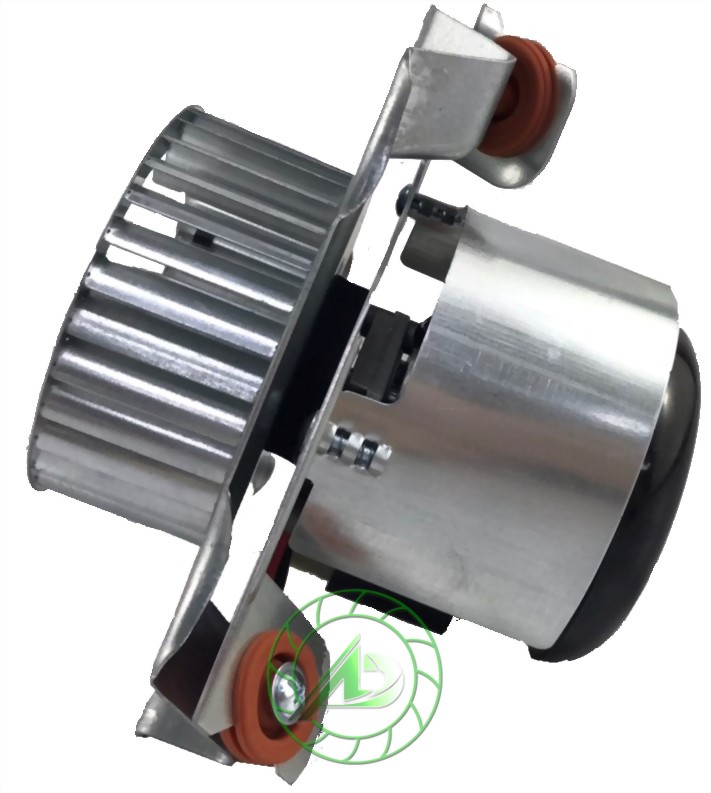

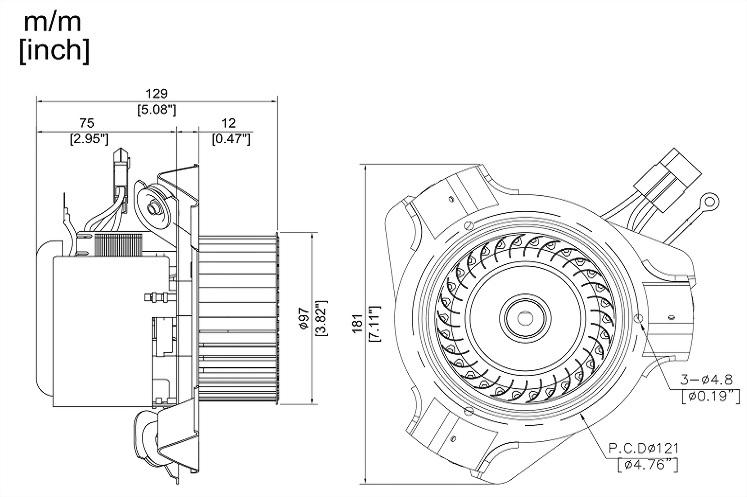

AD098ASP-V25

Air Deviser provided customized and standard centrifugal blower, HVAC blower motors, fan impellers, fan wheels with single inlet and double inlet type for heating, cooling, air moving. The blowers can create high air volume with low vibration which are commonly to be used on HVAC/R system and machinery for air moving solutions

Characteristics:
Blower fan motor is high air volume blower with compact size for easy installation and maintenance. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Blower fan motor for application on furnace, heater, oven, HVAC system for air inducting and circulation
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
