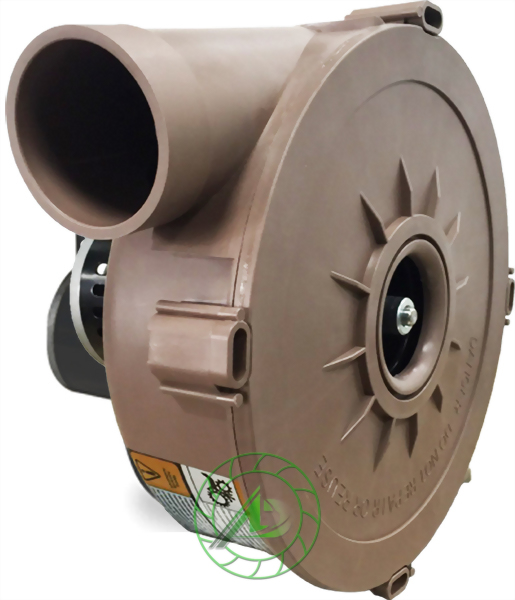

Draft Inducer / Air Blower Fan: ADP188BBC

ADP188BBC

Characteristics:
1.Air blower in PSC motor .
2. It's compact size is easy for installation and maintenance.
3. Blower motor with UL/CUL approval.
4. Direction of fan's outlet is adjustable.
Application:
Mainly apply on small boiler, machinery, air conditioner, kitchen hood, baking machine, packing machine, UV dryer, air shower etc. Or air suction, discharging, ventilation. furnace blower, heater, oven, HVAC system for air inducting and circulation.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
