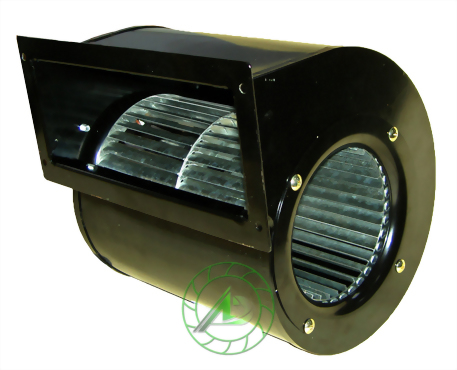

Centrifugal AC Blower- Double Suction Type: AD126DS

AD126DS

Centrifugal Fans (radial fans) and Industrial Fans Manufacturer-Air Deviser centrifugal fans are with high airflow and pressure, forward curved blades, industrial centrifugal fans mainly apply on machinery such as Heat Shrink Packaging Machine, coffee bean baking machine, bakery machine, printing mchine, UV machine, ovens, convection reflow oven

Characteristics:

1. Single outlet with double suction type.
2. High air volume capacity.
3. Fan's outlet is square.
4. 3-Sectional speed design provides different options makes the fan operate more efficiently.
Application:
Mainly apply on working bench of cleanroom factories, humidifier, dehumidifier, HVAC system for air circulation and refreshing.
Certificate:
United States UL Certification / Europe CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam
