  • ADZ121BSP
Draft Inducer / Air Blower Fan

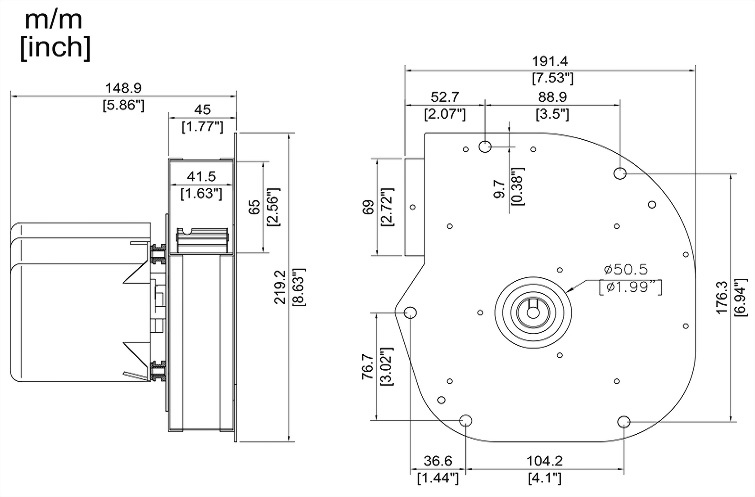

ADZ121BSP

Features:
Combustion air blower is high air volume blower with compact size for easy installation and maintenance. Shaded pole motor mounted with ball bearing is applied for motor shaft to ensure long life operation on the products. Motor is with UL/CUL certified.
Application:
Combustion air blower for application on furnace blower, heater, oven, HVAC system for air inducting and circulation
Certificate:
UL Certification / CUL Certification
Order Information:
Minimum Order: Negotiate
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: Taiwan/China Guangdong/China Shanghai/Vietnam


TECHNICAL DATA / 特性
型號 電壓 頻率 相數 電流 極數 馬力 轉速 最大靜壓 最大風量 備註
Model No. voltage frequency phase current pole power rpm  Max. air pressure Max. air flow Remark
V HZ Φ A P HP mm/Aq Inch WG pa cmm cfm cmh
ADZ121BSP 230 60 1 0.7 2 1/40 3000 45.4 1.79 444.9 2.24 78.8 134.4
