About Blower Wheel

Air Deviser is dedicated to producing the best product for customers, we can help you to find which meets all of your requirements.

We produce single inlet and double inlet, size from 3”~30” you can choose which is close to your. Our blower wheel is made in strip type and tab locked type, when you order a 20”~30” blower wheel we will use riveted, available materials including stainless, galvanized and aluminum. The hub can be fitted with a keyway, and 20”~30” standard with re-rods.

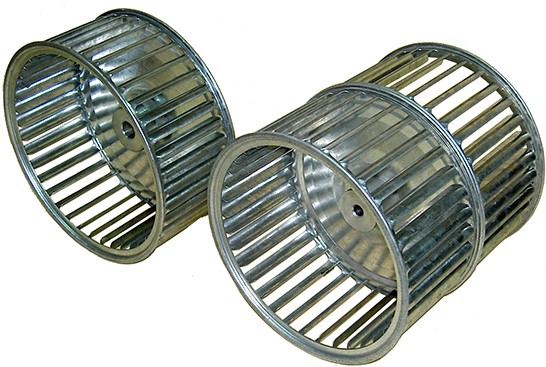

Blower Wheel-Blade Strip Type

Size from: 3”~12.2”

Apply to packing machine, bakery machine and industry oven

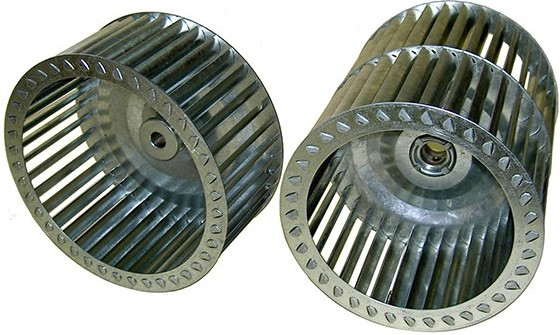

Blower Wheel-Blade Tab lock Type

Blower Wheel-Blade tab lock type

Size from: 5”~30”

Apply to HVAC equipment, kitchen hood and air door.

How do we tell the rotational direction?

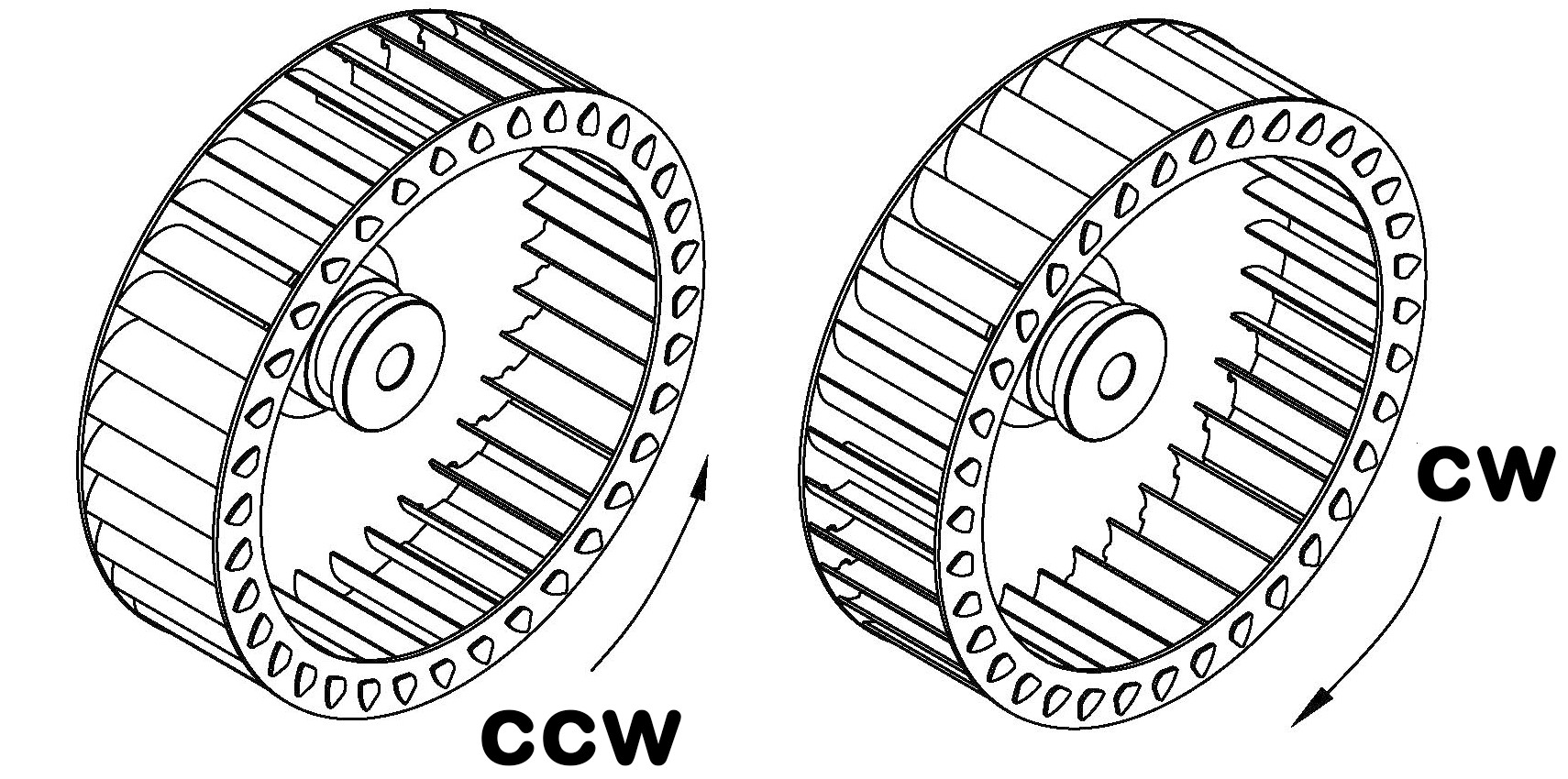

To view from the blower wheel’s hub to see if fan wheel is turning in clockwise (CW) or counterclockwise (CCW) as shown in the drawing below

blower wheel schematic diagram

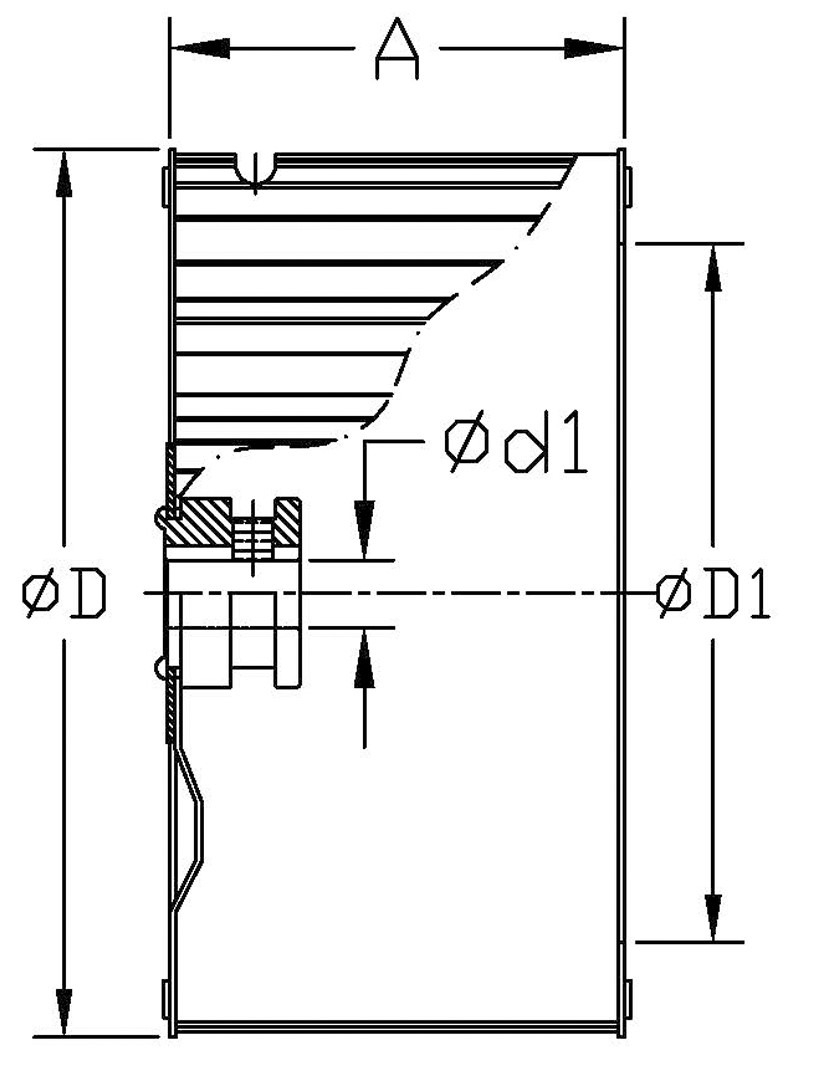

When placing order, please advise the rotational direction ( CW or CCW ), materials and make sure all the dimensional specifications as indicated in the drawing below.

blower-wheel measurement schematic diagram

AIR DEVISER INDUSTRIAL CO. , LTD. is with decades of experience in blower industry. We possess strong capability of R&D and OEM skill and own motor production to totally control the blower quality. Our products have been selling nearly 100 countries worldwide include USA, Canada, Middle east countries, EU, South east countries…etc.

If you have any doubt about the type, rotation and size, welcome to contact us airdeviser@air-dvs.com.tw we will help you to find the right blower wheel with pleasure.
